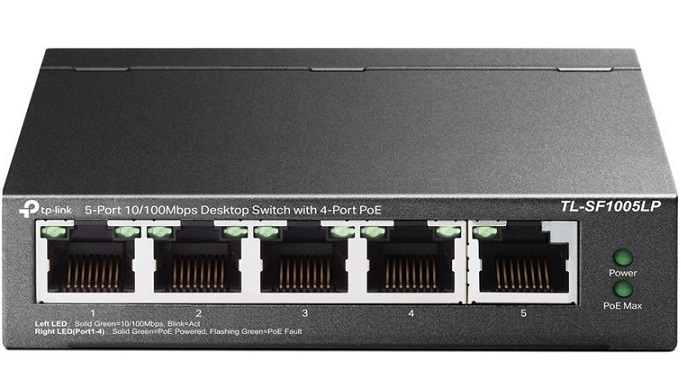

Switch PoE TP-LINK TL-SF1005LP 5-Port 10/100Mbps with 4-port

- 5× 10/100 Mbps RJ45 ports.

- 4× PoE ports transfer data and power on individual cables.

- Works with IEEE 802.3af compliant PDs.

- Up to 250m data and power transmitting range under Extend Mode.

- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.

- Supports PoE Power up to 41W for all PoE ports.

- Plug and play with no configuration required.

Specifications

Hardware
Interface 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions (W x D x H) 100 x 98 x 25 mm
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation 6.48 BTU/h (no PD connected)
160.27 BTU/h (with 41 W PD connected)
Software
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Others
Certification FCC, CE, RoHS
Environment Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

- Bảo hành: 12 tháng.
